Equipment Detail

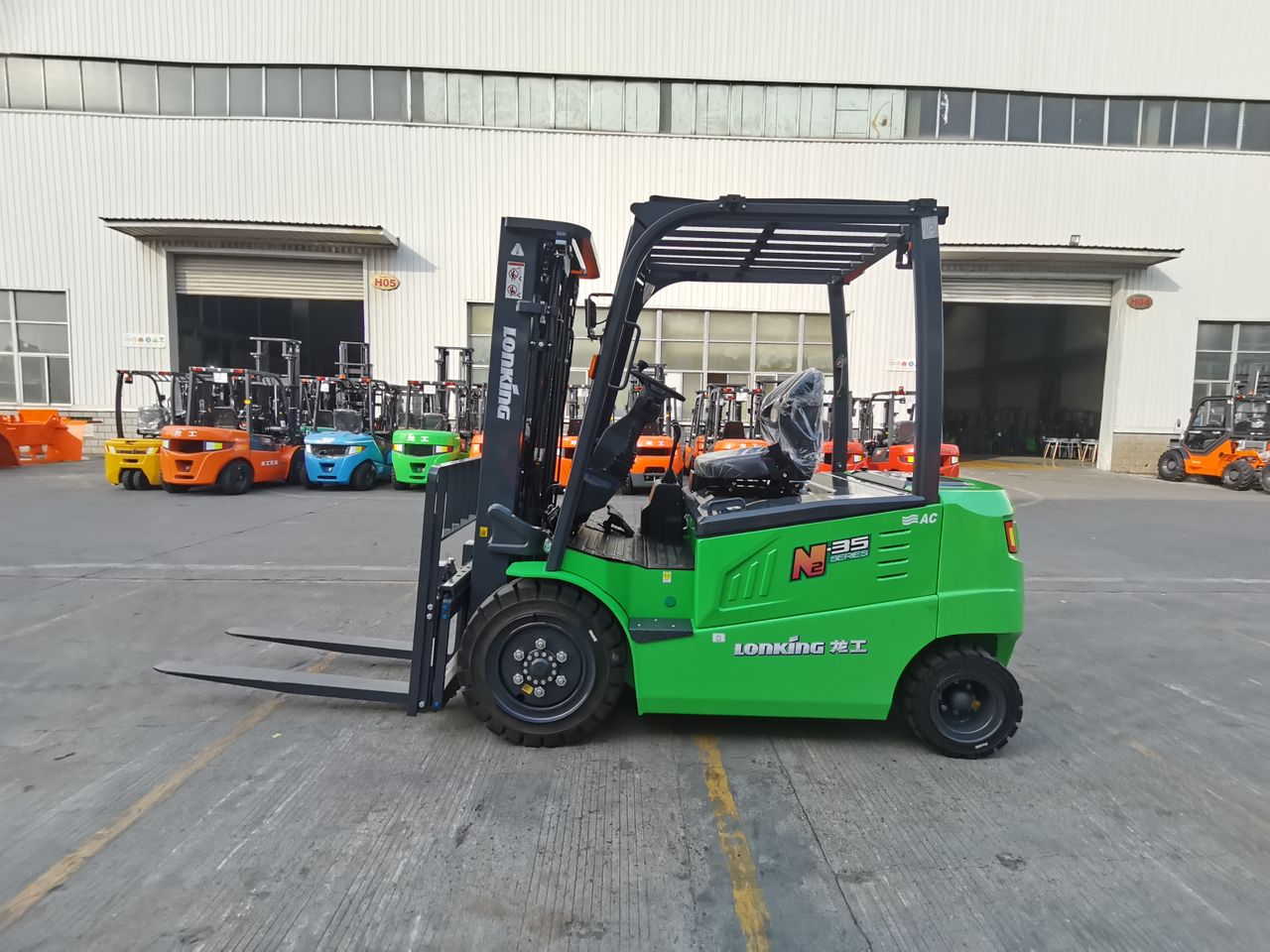

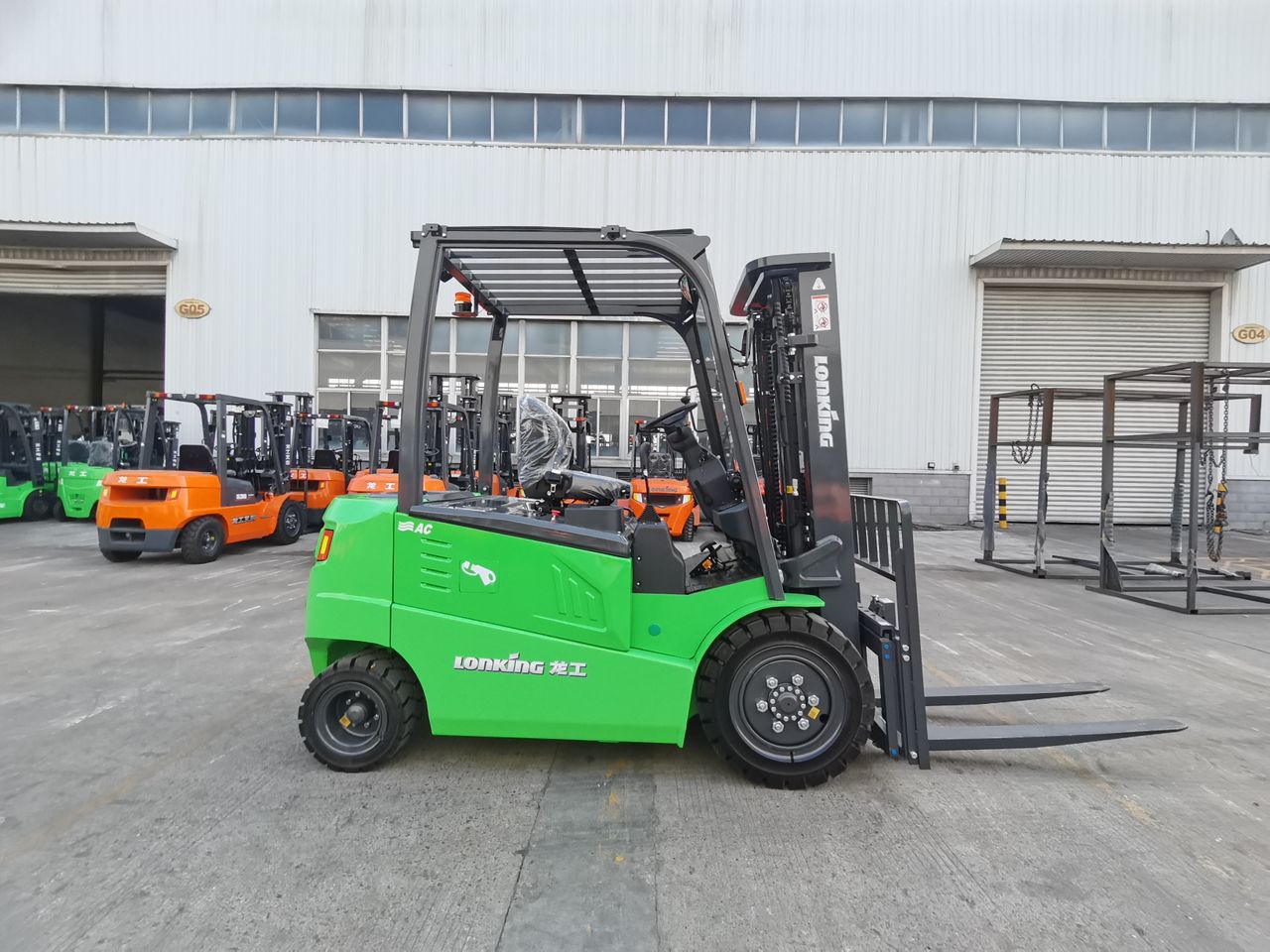

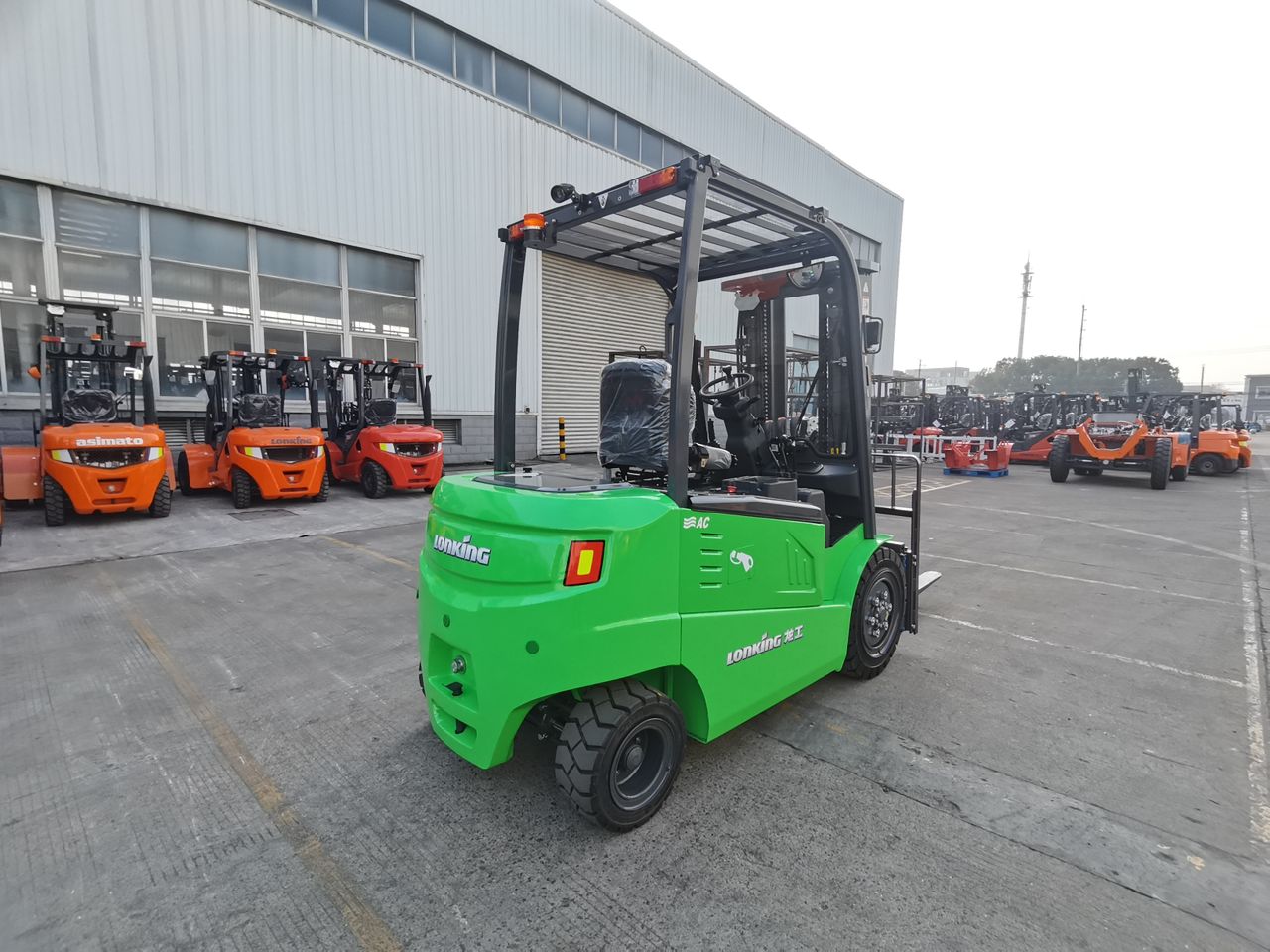

Lonking N Series Forklift

The LG25B Electric Forklift combines power, safety, and efficiency for modern material handling. Featuring a 4.8 m three-stage mast, 80V/280Ah lithium-ion battery, and ultra-fast charger, it delivers up to 6 hours of runtime with just a 2-hour recharge. Designed for precision and safety, it includes an OPS safety seat, seat occupancy sensor, blue reverse light, mast tilt, and side-shift functions. Solid tires ensure durability and low maintenance across tough environments. Ideal for warehouses and industrial operations, the LG25B offers long-lasting performance, energy efficiency, and a 5-year battery warranty for dependable, cost-effective productivity.

Power Type	Electric (AC)
Load Center	19.7 in
STD Max height (with backrest)	154.9 in
STD Max lifting height	118.1 in
Overhead guard height	83.1 in
Overall length (with fork)	143.7 in
Front overhang	18.1 in
Rear overhang	18.5 in
Min.ground clearance (Frame/Mast)	5.9/4.3 in
Overall width	45.7 in
Adjusting range of fork (outside)	9.4-40.9 in
Front wheel tread	38.2 in
Rear wheel tread	38.6 in
Min.turning radius	90.6 in
Tires type	Solid Tires
Tires size, front/rear	7.00-12-.012PR / 6.00-9-10PR
Max.traveling speed, loaded/unloaded	7.5/6.8 mph
Max.lifting speed, loaded/unloaded	69/55 fpm
STD operating weight	7848 lbs
Drive motor	10 kw
Lift motor	12 kw
Battery votage/capacity	80V / 205Ah
Mast	177.2 in Max. lifting Height

4.8 Metre 3 stage mast,

280Ah/80 Volt lithium battery with ultra fast charger, approximately 6 hours of run time and 2 hours charge time

OPS safety seat
Side shift
Solid tires

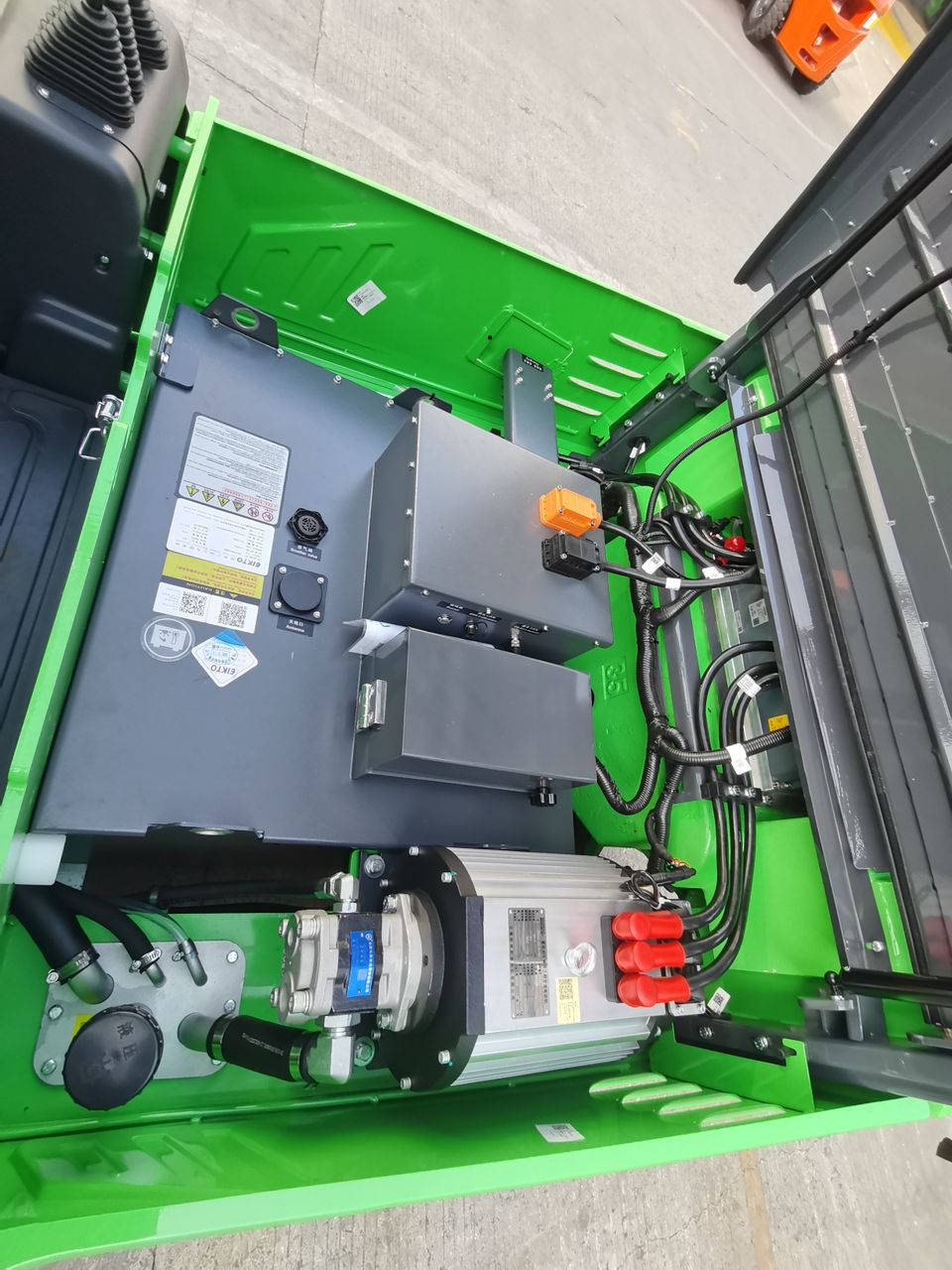

Lithium-Ion Battery

This forklift is equipped with a lithium-ion battery, known for its superior energy density, rapid charging, and significantly longer service life compared to traditional lead-acid batteries. This allows for extended operating hours and reduces the downtime typically associated with recharging.

The model comes with a dedicated charger and includes a 5-year battery warranty for added reliability and peace of mind.

Power Type: Electric (AC), Lithium-ion
Voltage/Capacity: 80V / 280Ah

Note: Larger batteries available, please inquire for details.

SuperEC Battery Charger

The SuperEC charger is engineered for maximum energy efficiency and fast charging performance. It minimizes energy consumption while reducing charging time, helping improve productivity and reduce operational costs.

Compact and lightweight, it’s easy to move and store. The built-in digital display provides real-time updates on battery level and charging status, making operation simple and intuitive.

Built-in Safety Protections:
Over-voltage protection
Over-current protection
Short-circuit protection

These safeguards help protect both the battery and vehicle during charging.

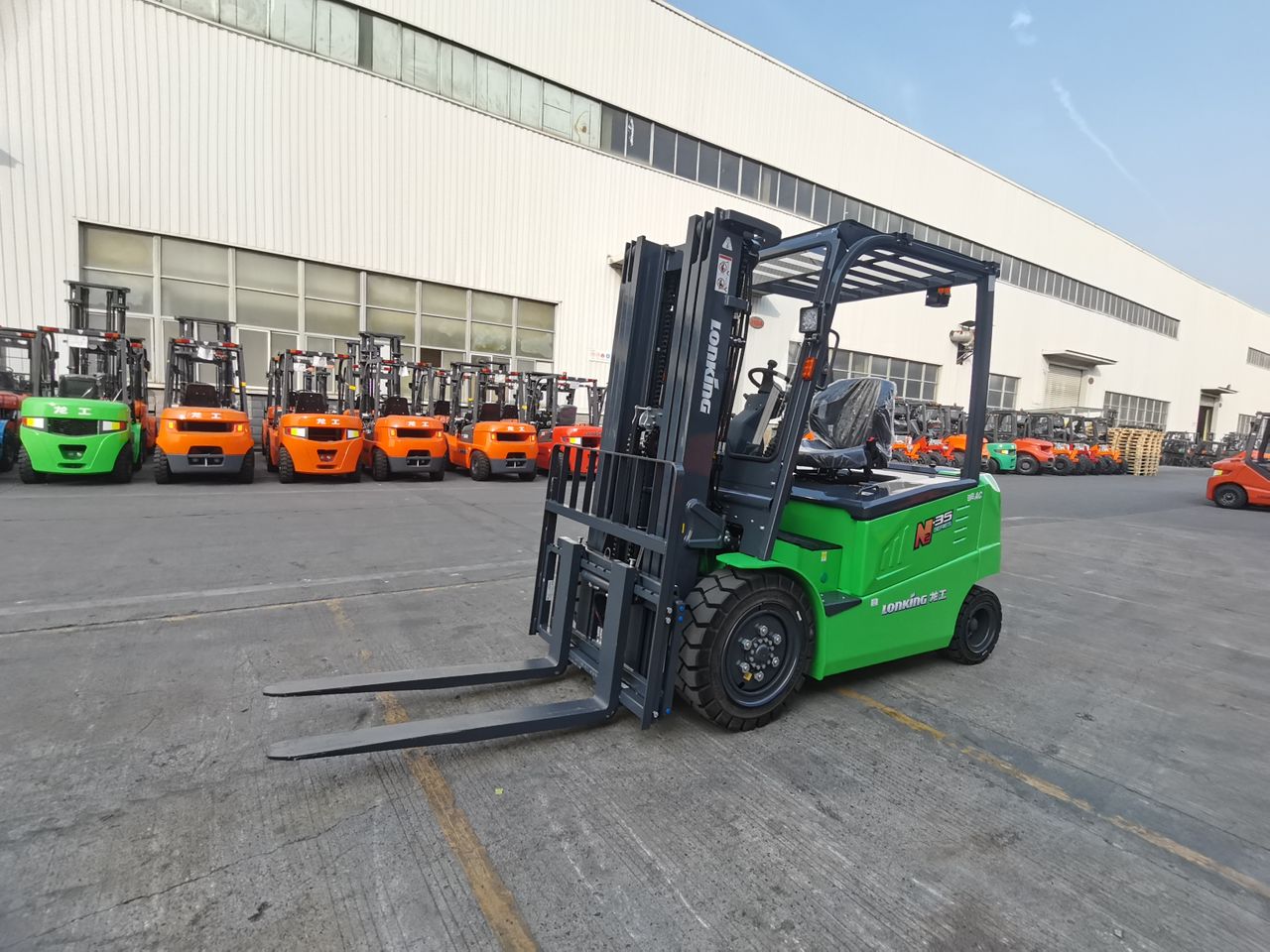

Mast System

This model features a 3-stage mast, offering enhanced lifting versatility while maintaining a compact design and solid stability. It’s ideal for operations requiring various lift heights, such as warehouses, logistics hubs, and material handling centers.

Multiple mast configurations are available based on specific operational requirements.

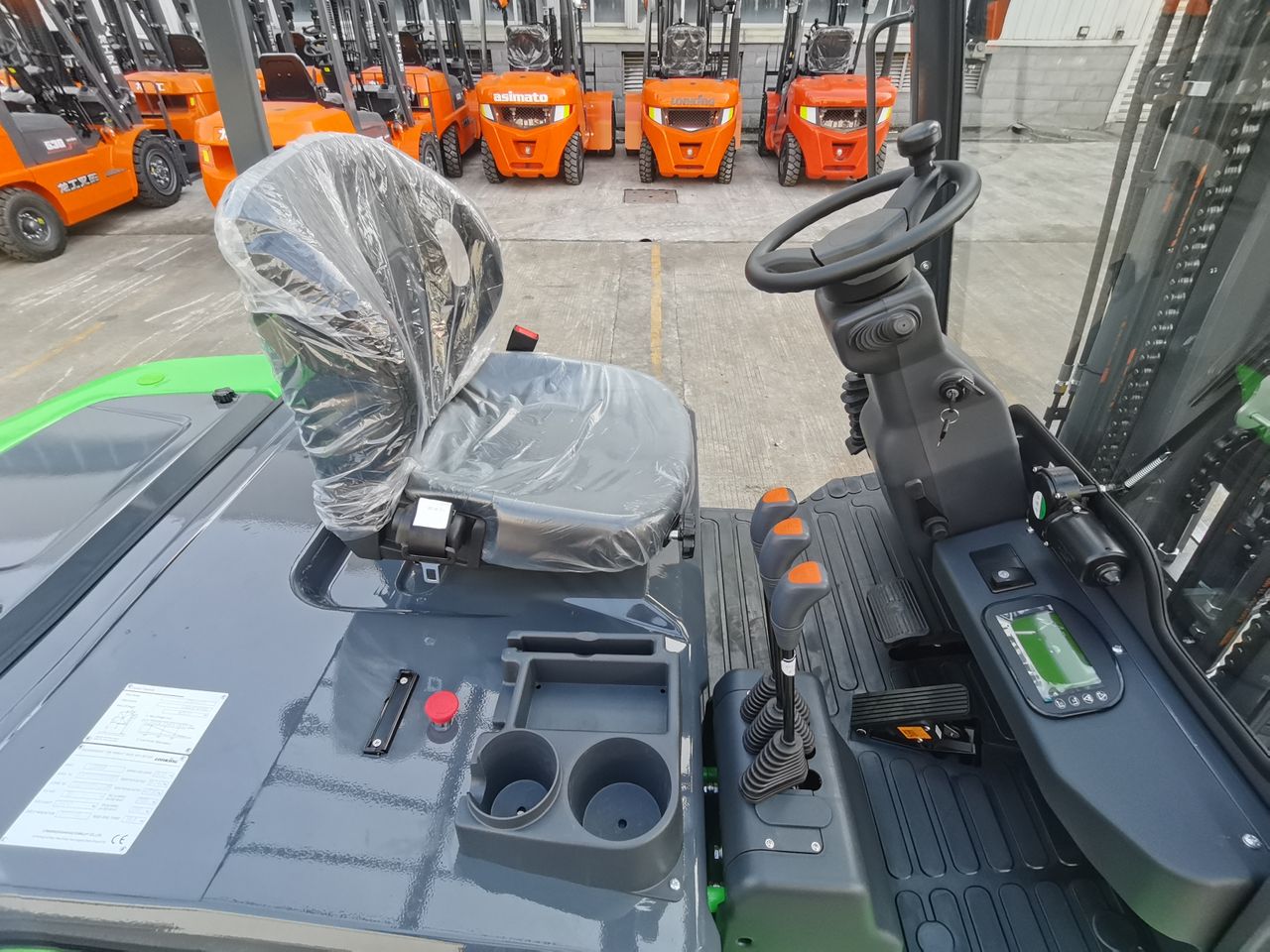

Safety Feature: Seat Occupancy Sensor

The LG25B includes an advanced seat occupancy sensor. This system detects whether the operator is seated, and if not, it automatically shifts the motor to neutral mode when running.

This safety function prevents unintended movement when the operator leaves the seat, reducing the risk of accidents when the forklift is left unattended.

Tires

The LG25B is fitted with solid rubber tires built for durability and high performance in demanding conditions like warehouses, recycling facilities, and construction sites.

Benefits include:
