Equipment Detail

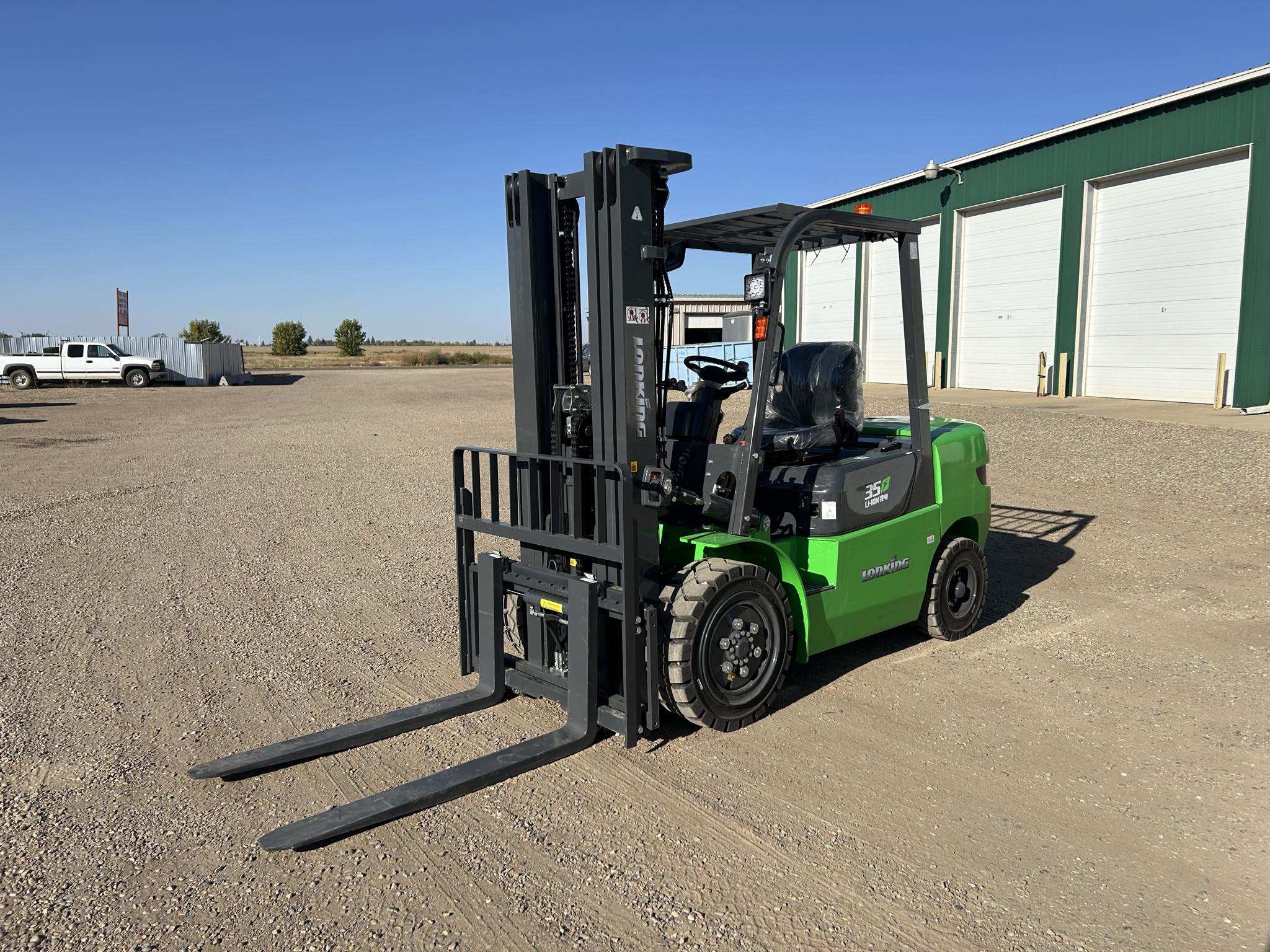

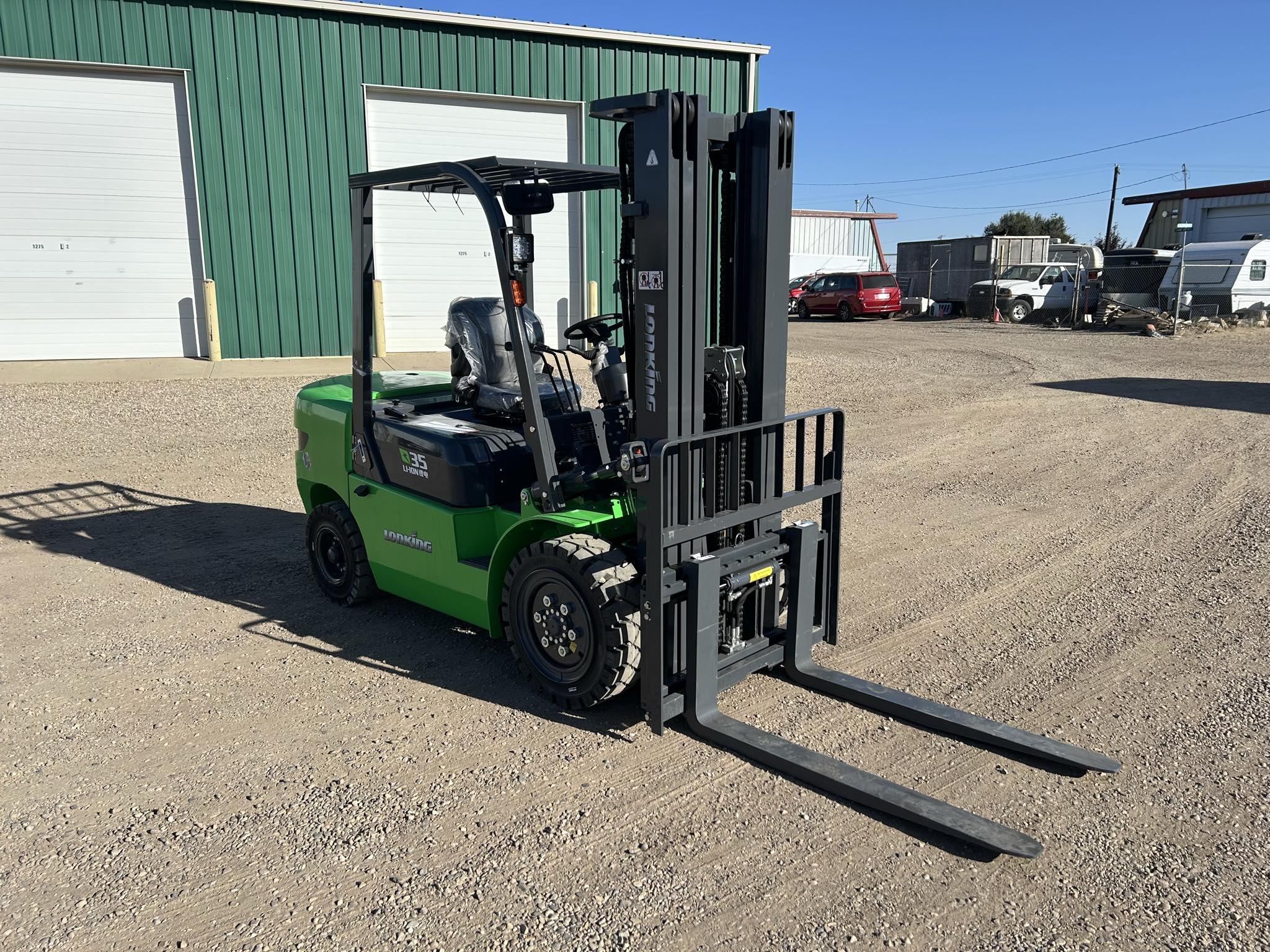

Lonking E Series Forklift

The LG25B Electric Forklift features a 4.8 m three-stage mast, powered by an 80V/280Ah lithium-ion battery with fast 2-hour charging for extended runtime. Designed for safety and efficiency, it includes an OPS safety seat, seat occupancy sensor, blue reverse light, solid tires, mast tilt, and side-shift functions for precise handling. Its SuperEC charger ensures rapid, energy-efficient charging with built-in protections. Compact yet powerful, it’s ideal for warehouses and industrial settings, offering high load capacity, low maintenance, and reliable performance backed by a 5-year battery warranty.

Specifications

4.8 Metre 3 stage mast,

280Ah/80 Volt lithium battery with ultra fast charger, approximately 6 hours of run time and 2 hours charge time

OPS safety seat
Side shift
Solid tires

Power Type	Electric (AC)
Load Center	19.7 in
STD Max height (with backrest)	154.9 in
STD Max lifting height	118.1 in
Overhead guard height	83.1 in
Overall length (with fork)	143.7 in
Front overhang	18.1 in
Rear overhang	18.5 in
Min.ground clearance (Frame/Mast)	5.9/4.3 in
Overall width	45.7 in
Adjusting range of fork (outside)	9.4-40.9 in
Front wheel tread	38.2 in
Rear wheel tread	38.6 in
Min.turning radius	90.6 in
Tires type	Solid Tires
Tires size, front/rear	7.00-12-.012PR / 6.00-9-10PR
Max.traveling speed, loaded/unloaded	7.5/6.8 mph
Max.lifting speed, loaded/unloaded	69/55 fpm
STD operating weight	7848 lbs
Drive motor	10 kw
Lift motor	12 kw
Battery votage/capacity	80V / 205Ah
Mast	177.2 in Max. lifting Height

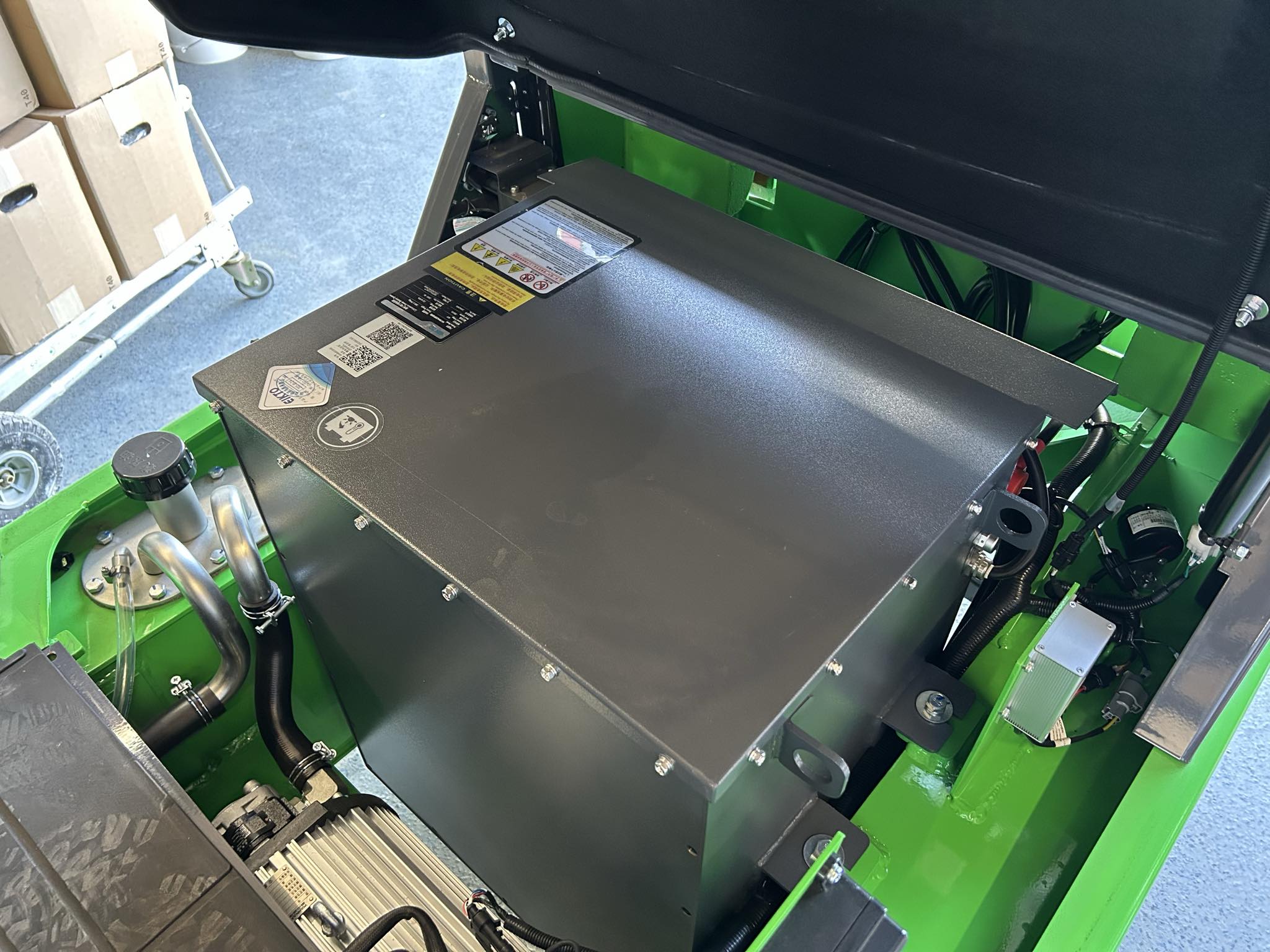

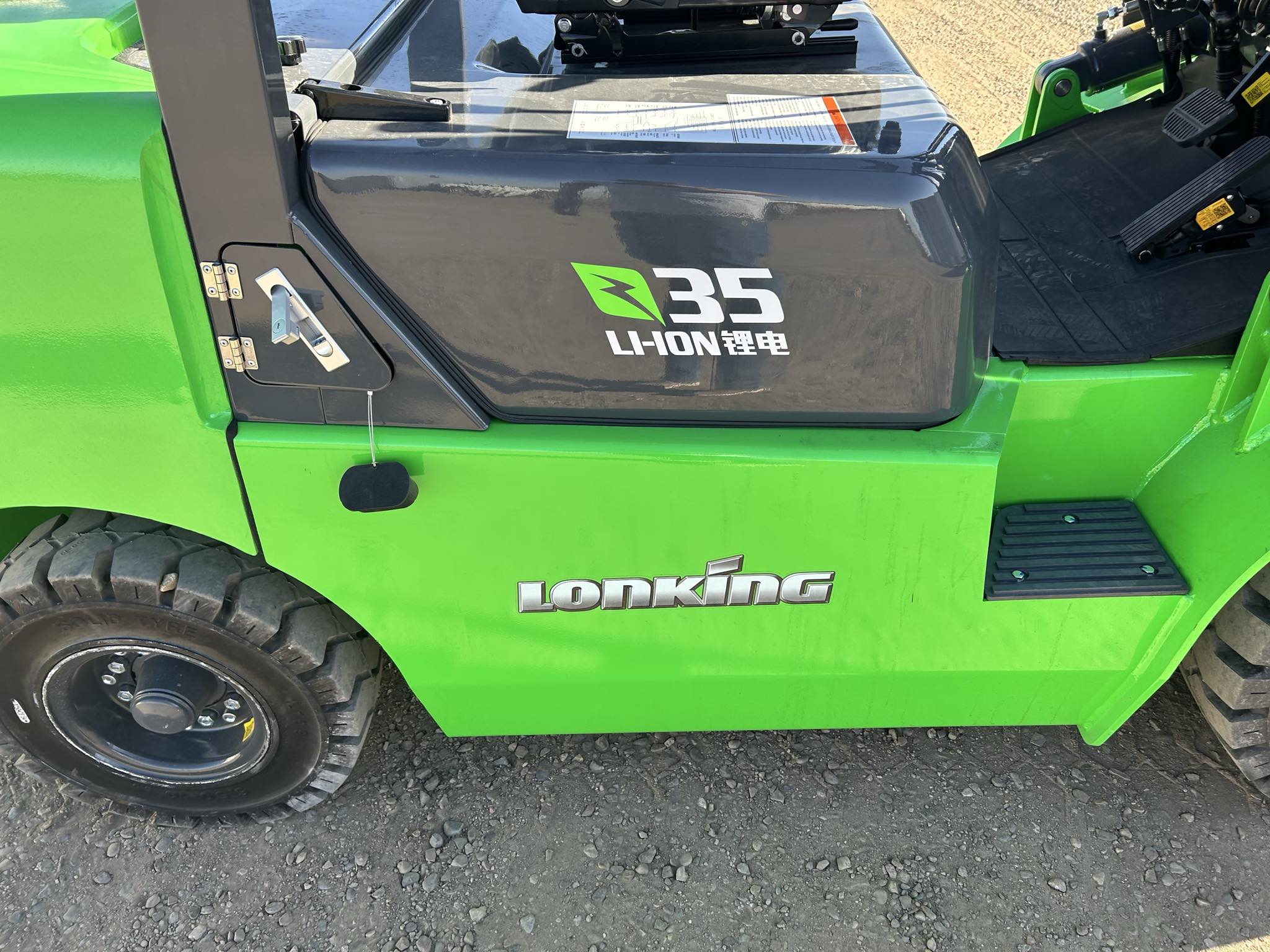

Lithium-Ion Battery

This forklift is powered by an advanced lithium-ion battery, recognized for its exceptional energy efficiency, fast charging capability, and longer lifespan compared to standard lead-acid batteries. It supports extended working hours and minimizes downtime between charges.

The model includes a dedicated charger and comes with a 5-year battery warranty, ensuring dependable performance and peace of mind.

Power Type: Electric (AC), Lithium-ion
Voltage/Capacity: 80V / 280Ah

NOTE: Larger batteries available, inquire for details

SuperEC Battery Charger

The SuperEC charger is designed for high energy efficiency and rapid charging performance. It helps cut energy usage and shortens charging time, boosting productivity while reducing operational expenses.

Its lightweight and compact design makes it easy to handle and store, while the digital display provides real-time updates on charging progress and battery levels for user-friendly operation.

Integrated Safety Features:

Over-voltage protection
Over-current protection
Short-circuit protection

These built-in safeguards help ensure safe and reliable charging, protecting both the battery and the forklift.

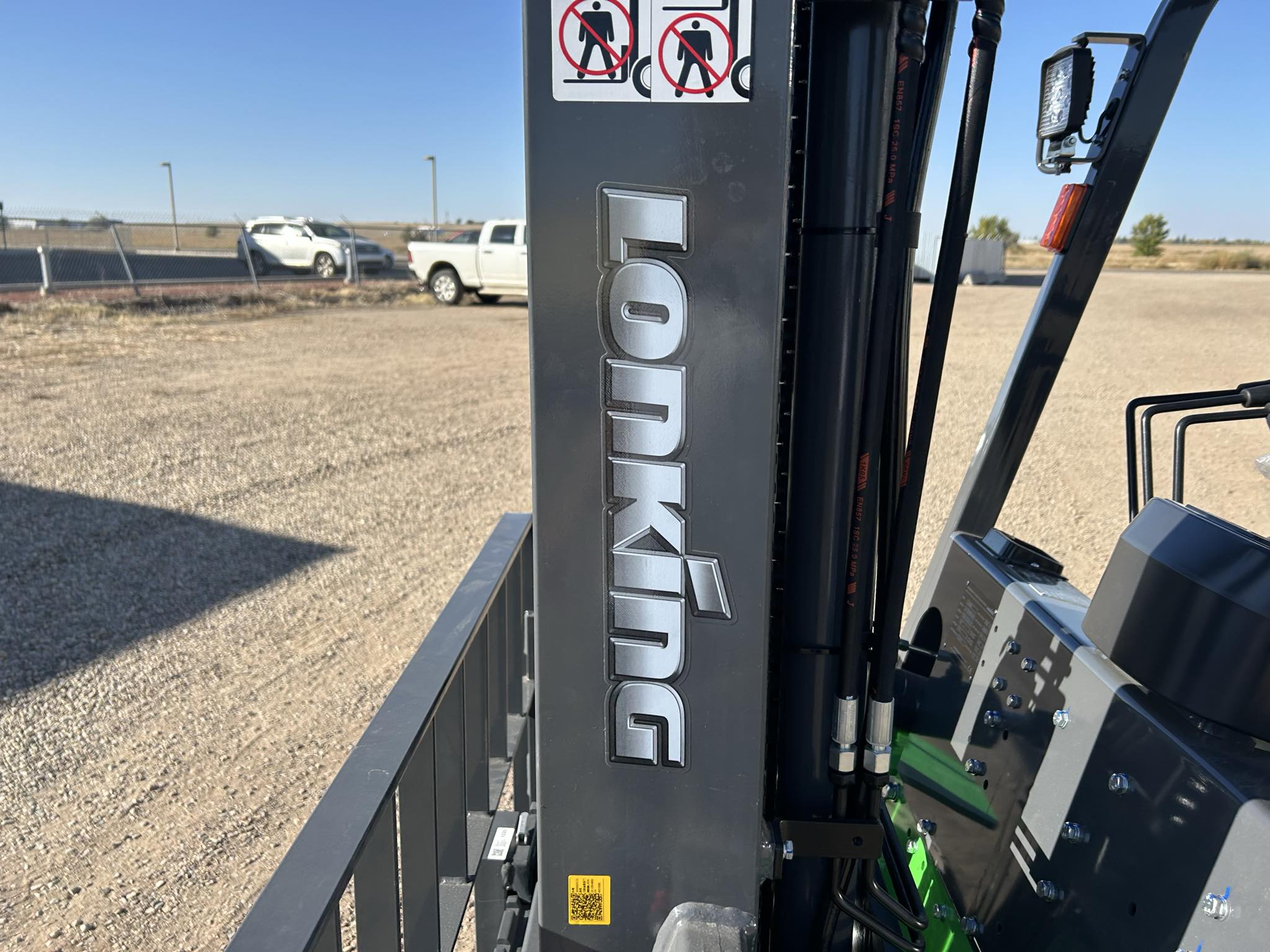

Mast System

The forklift is equipped with a three-stage mast, providing excellent lift versatility while maintaining stability and compactness. It’s perfectly suited for warehouses, distribution centers, and industrial handling environments that require varied lifting heights.

Customized mast options are available to meet specific application needs.

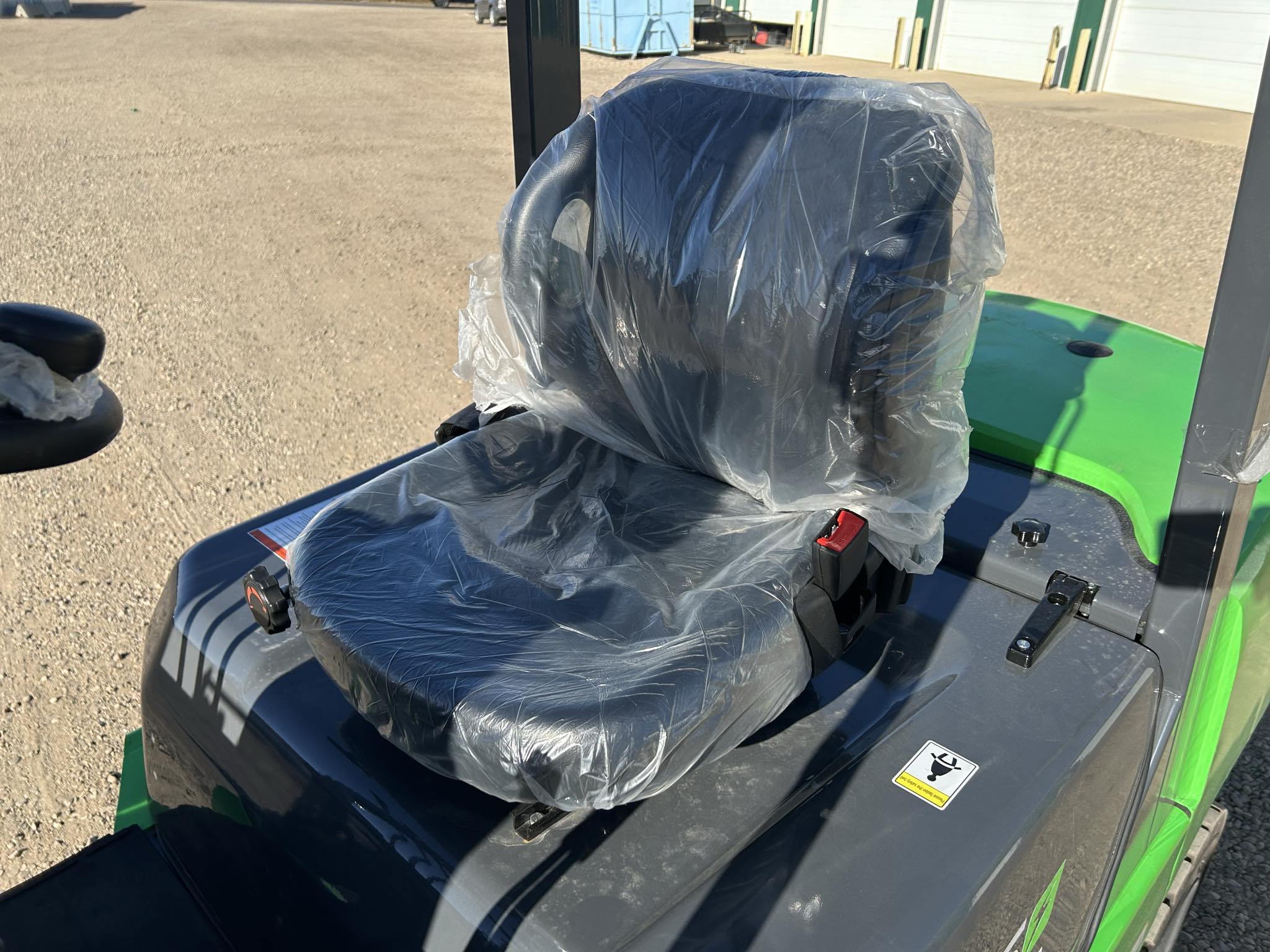

Safety Feature: Seat Occupancy Sensor

The seat occupancy sensor automatically detects if the operator is seated. When the seat is vacant, the system shifts the motor into neutral mode, preventing unintended motion.

This intelligent feature enhances safety by ensuring the forklift remains stationary when the operator steps away.

Tires

The LG25B model uses solid rubber tires engineered for demanding industrial settings such as warehouses, recycling facilities, and construction environments.

Advantages:

High load capacity
Resistant to punctures and wear
No need for air pressure checks or refills
Reduced maintenance and long service life

These tires contribute to greater uptime and lower long-term operating costs.

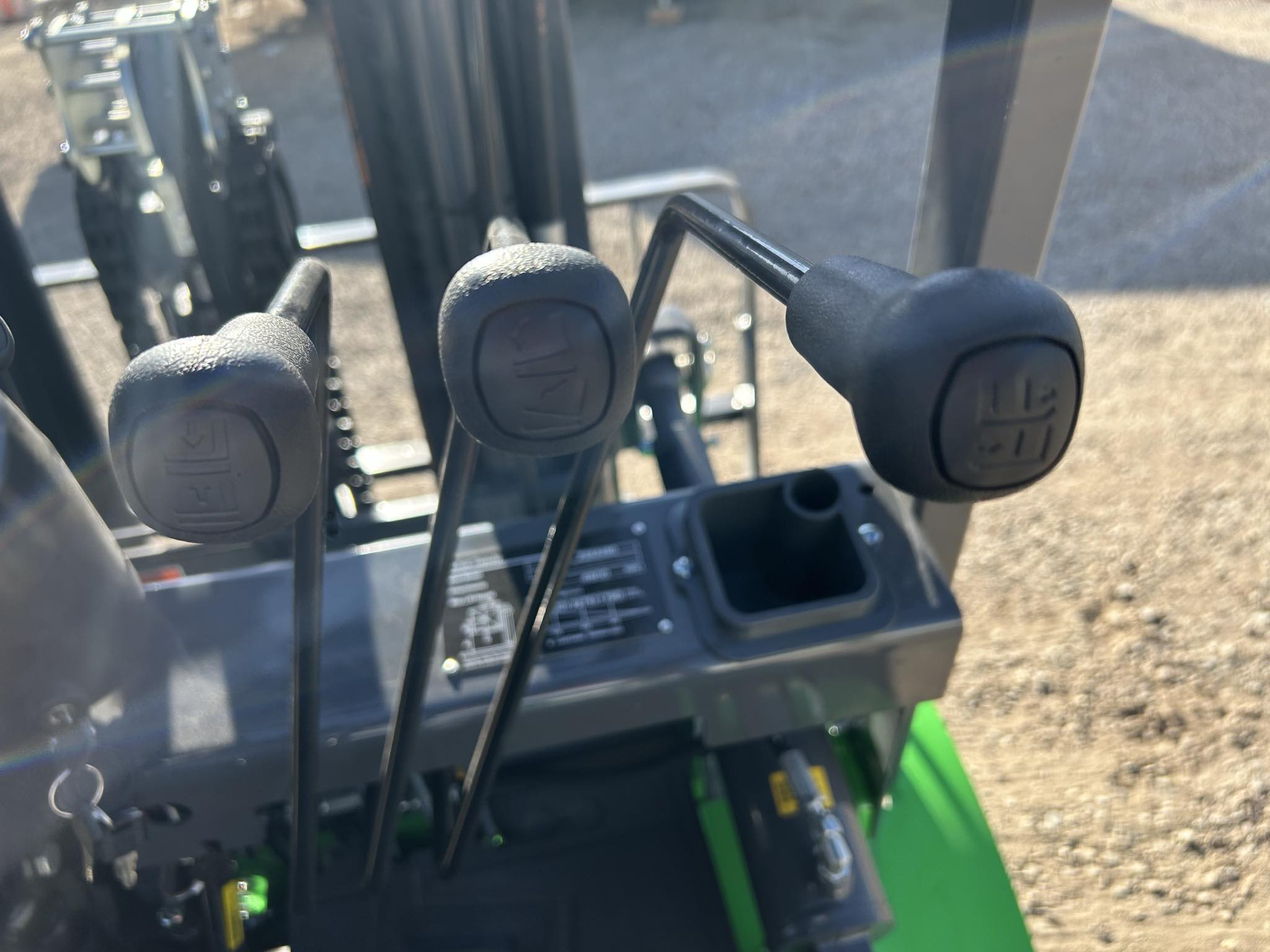

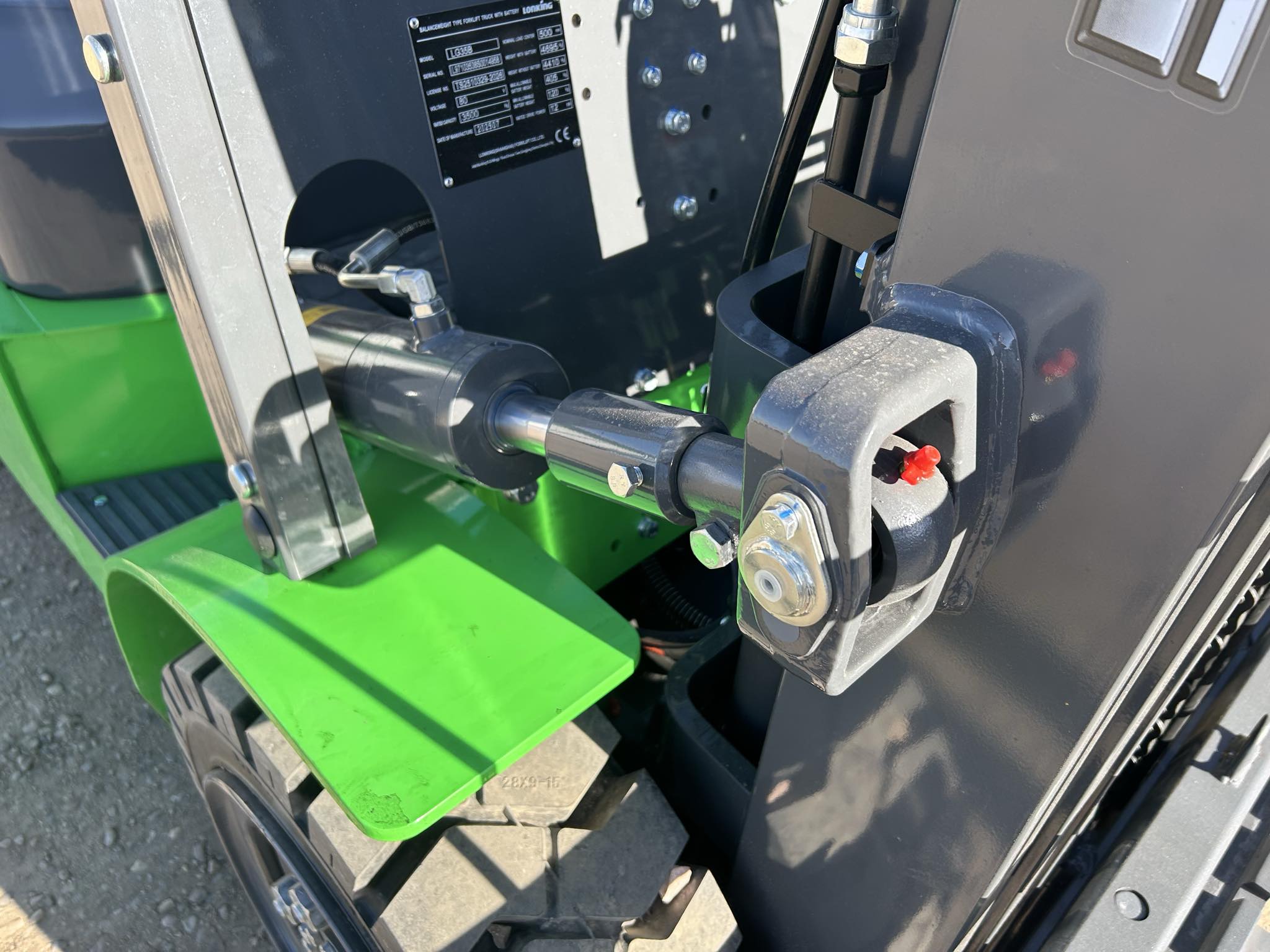

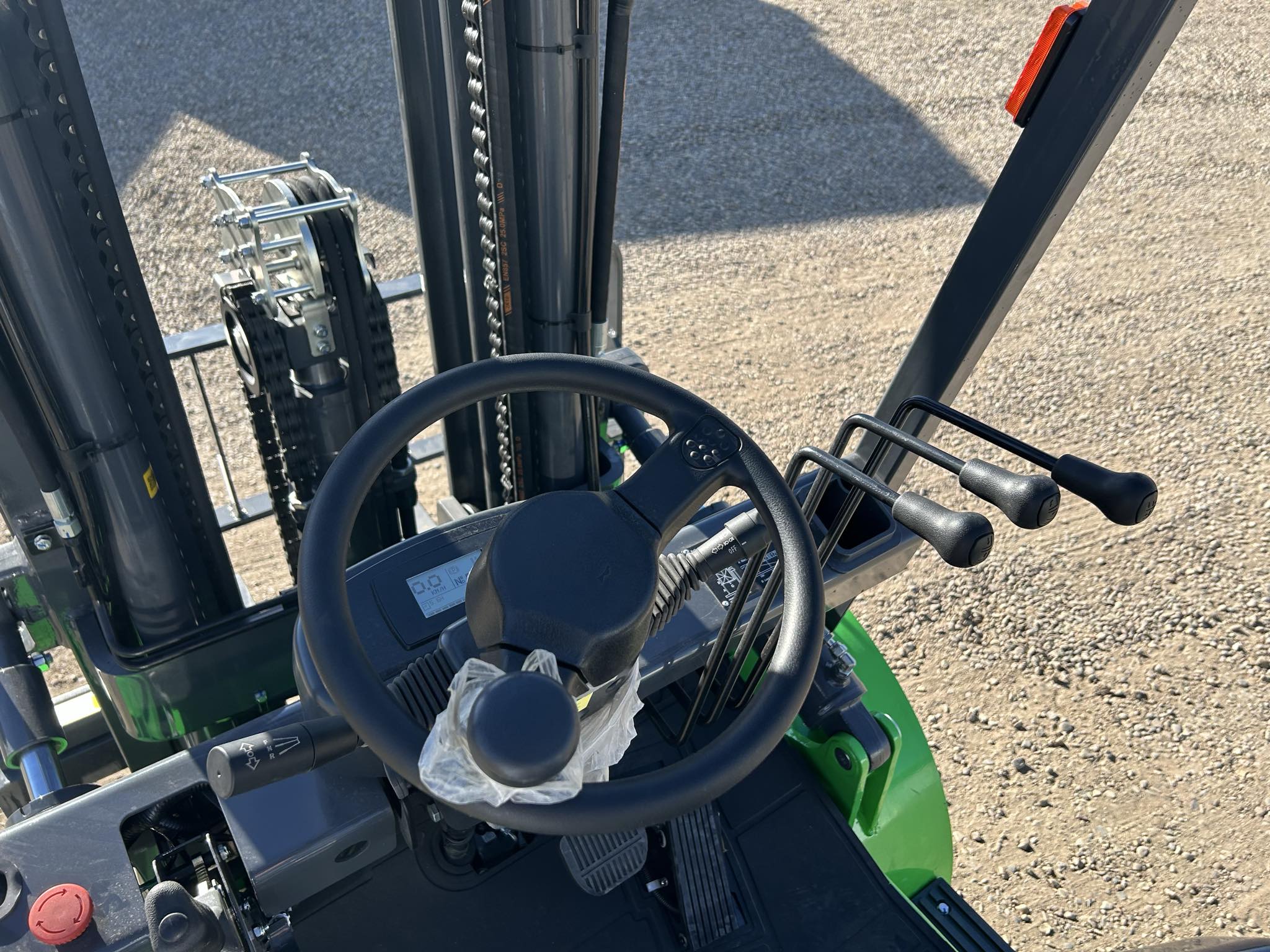

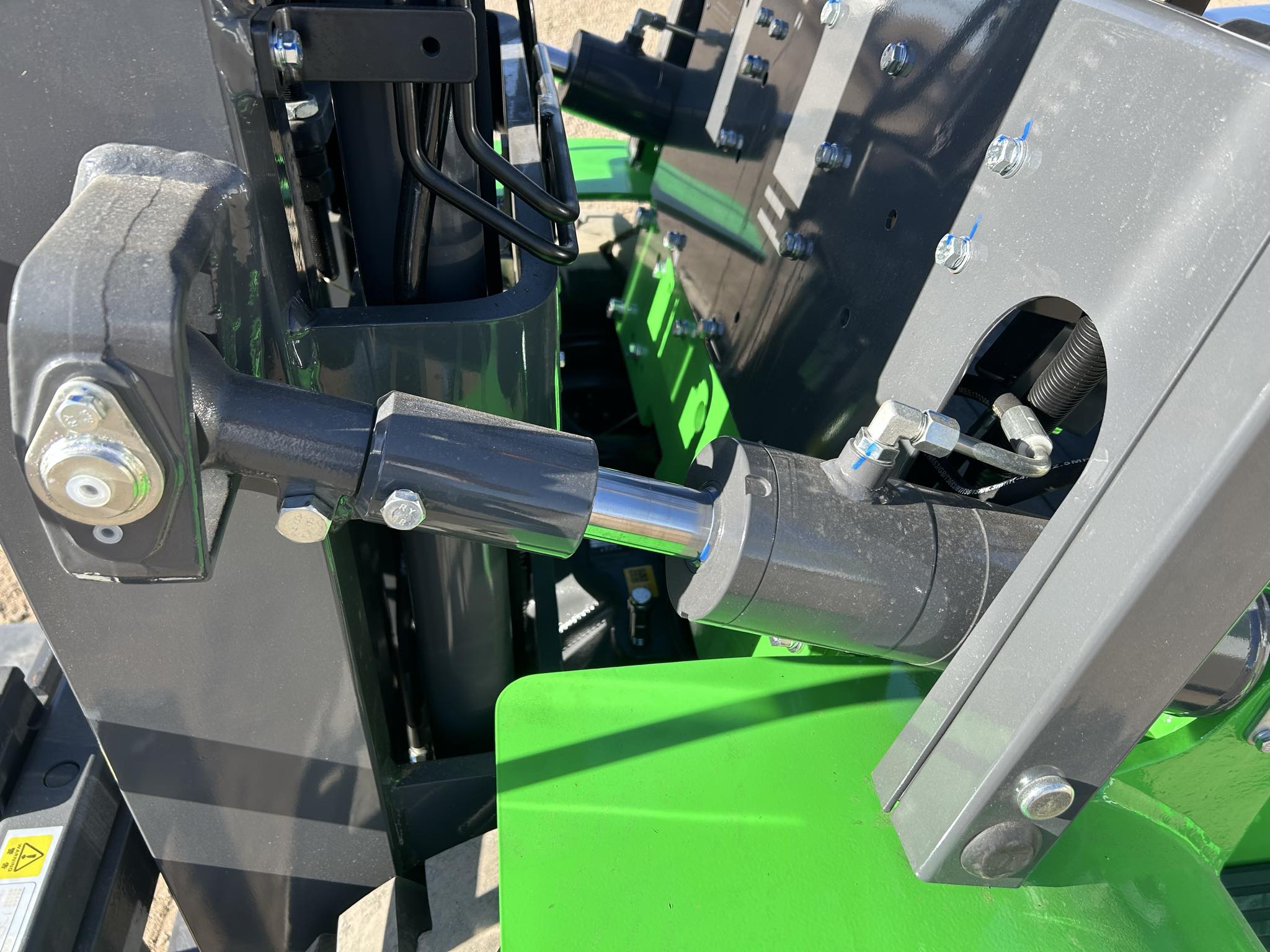

Mast Tilt & Side-Shift Functions:

For precise material handling, the forklift is equipped with mast tilt and side-shift functions.

Tilt Function: Allows fork angle adjustment for better control when stacking or working on uneven surfaces.

Side-Shift Function: Enables lateral fork movement without repositioning the entire forklift, offering more accurate load placement in narrow spaces.

Together, these functions enhance maneuverability, reduce operator strain, and make lifting operations smoother and more efficient.
